KSC MK1

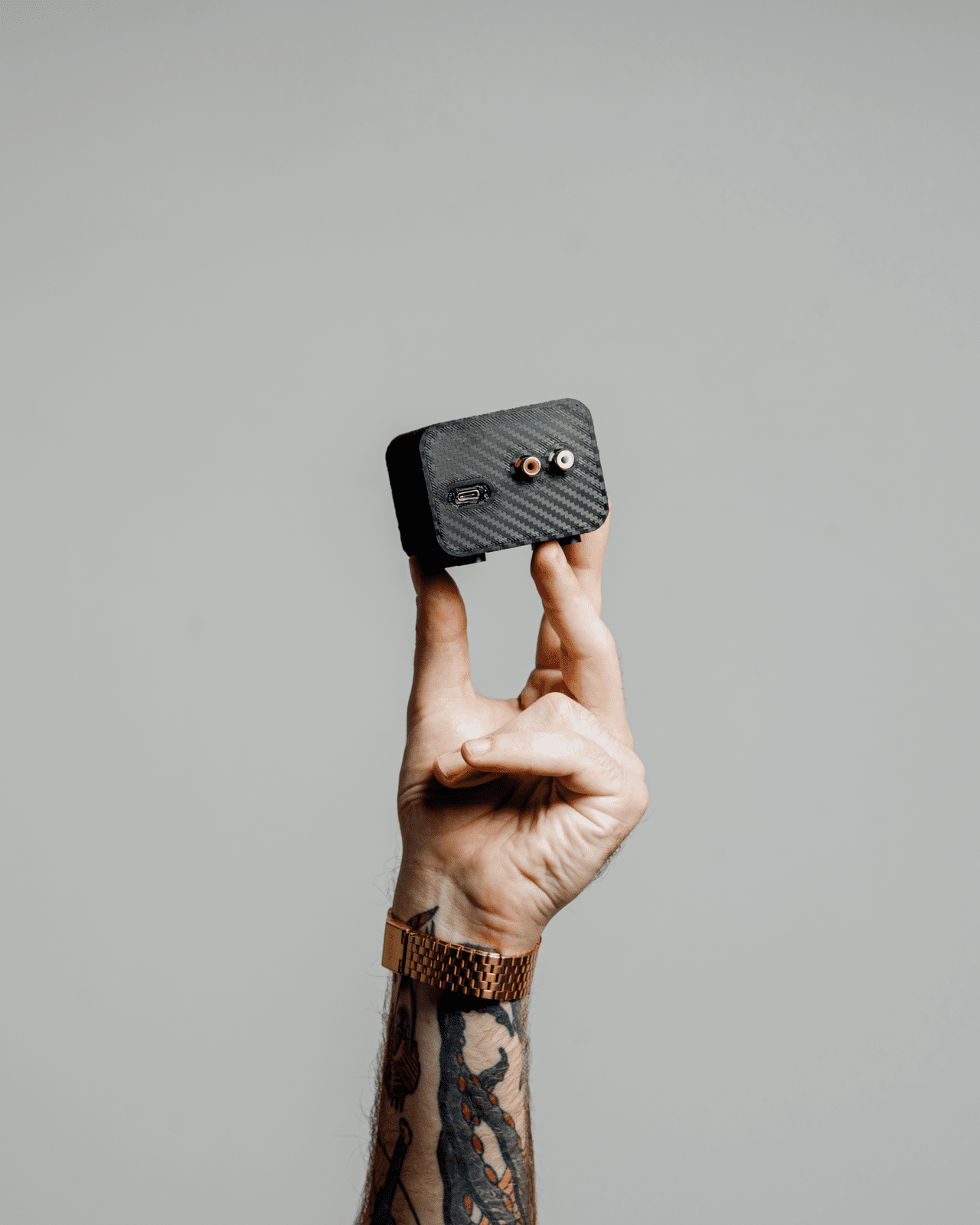

The KINEF SOUND CARD MK1 is a ultra light USC-C DAC.

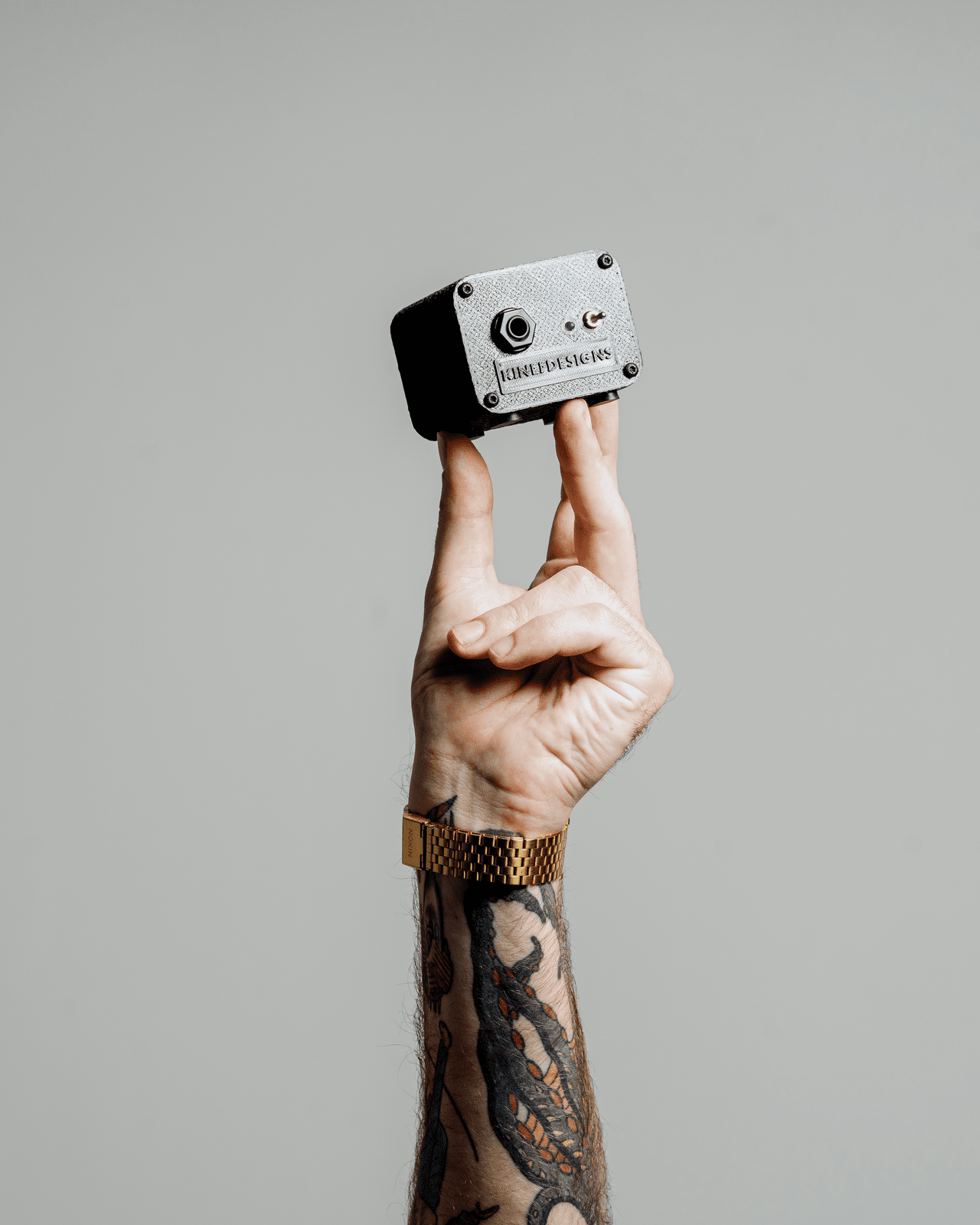

The KSC MK1 is the perfect companion to the KMAS MK1, being ultra light can be broung anywhere and with just a USB-C cable from any modern day phone, you are good to goo.

Specifications:

1. Signal Inputs
   • Digital (USB-C connector)


2. Signal Outputs
   • Line Out (RCA connector)


3. Output Level
   • Up to 2.1Vrms (into 1k Ohm load)


4. Total Harmonic Distortion + Noise (THD+N @ -1 dBFS):
   • -93dB @ fs 96kHz


5. Signal to Noise Ratio (SNR):
   • 112dB @ fs 96kHz


6. Resolution

   • 24bits


7. Sampling Frequency
   • 44.1kHz / 48kHz / 96kHz


8. Operation System Usability
   • Windows / MacOS / Linux


9. Power Input
   • 5VDC / 0.5A / 2.5W


10. Construction material
    • PETG


11. Dimensions (W – H – D)
    • 104mm
    • 48mm
    • 49mm


12. Mass
    • 110kg


13. What comes in the package
    • 1x Audio interface
