KBAS MK1

Introducing the KINEF BIG ACTIVE SPEAKERS MK1, code-named Devilish Trio—a powerhouse evolution of the KAS MK1.

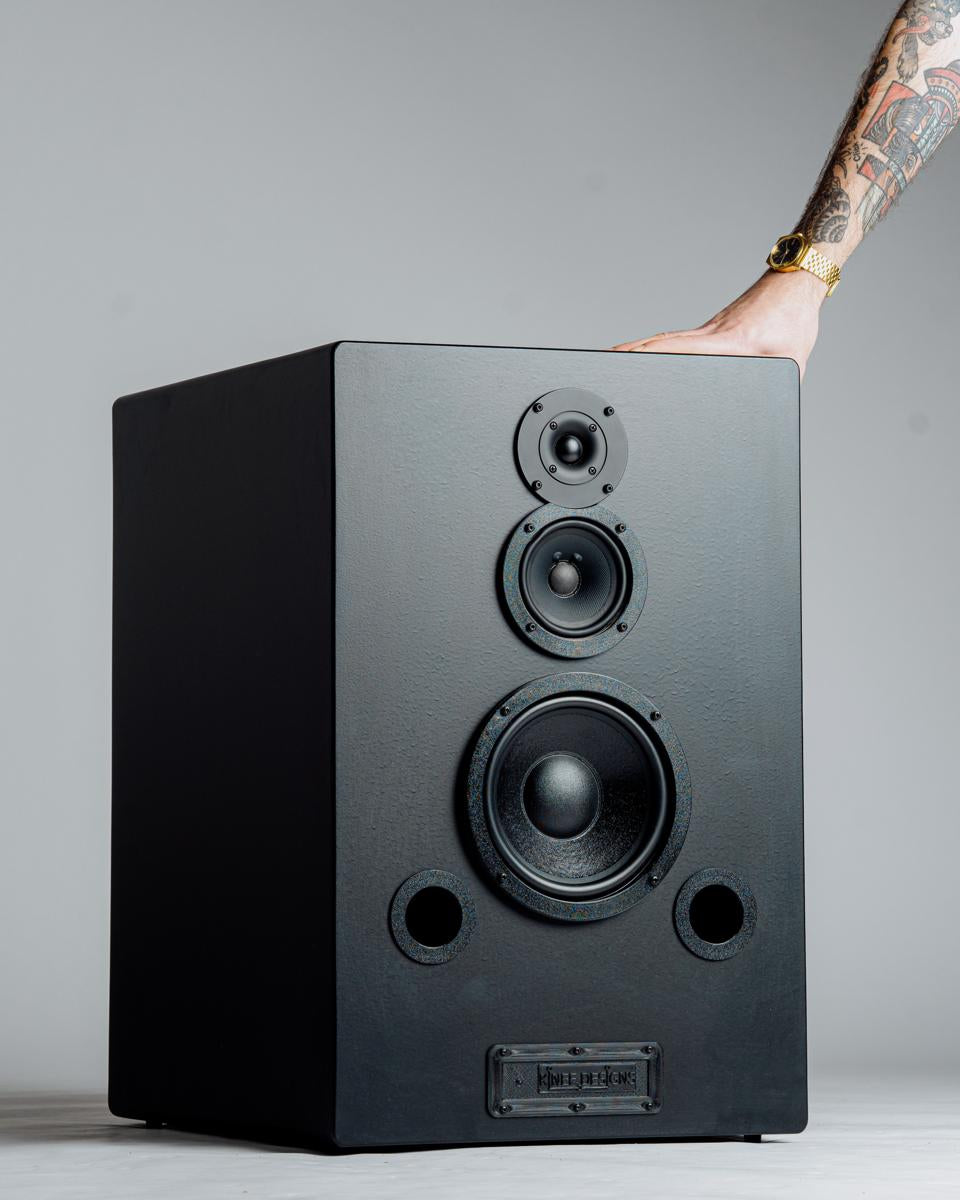

Each enclosure features a single woofer, delivering just the right amount of neighbor-annoying power. This speaker system isn’t just loud—it’s an experience. Expect enough force to shake your walls, windows, ceiling, and even your very core.

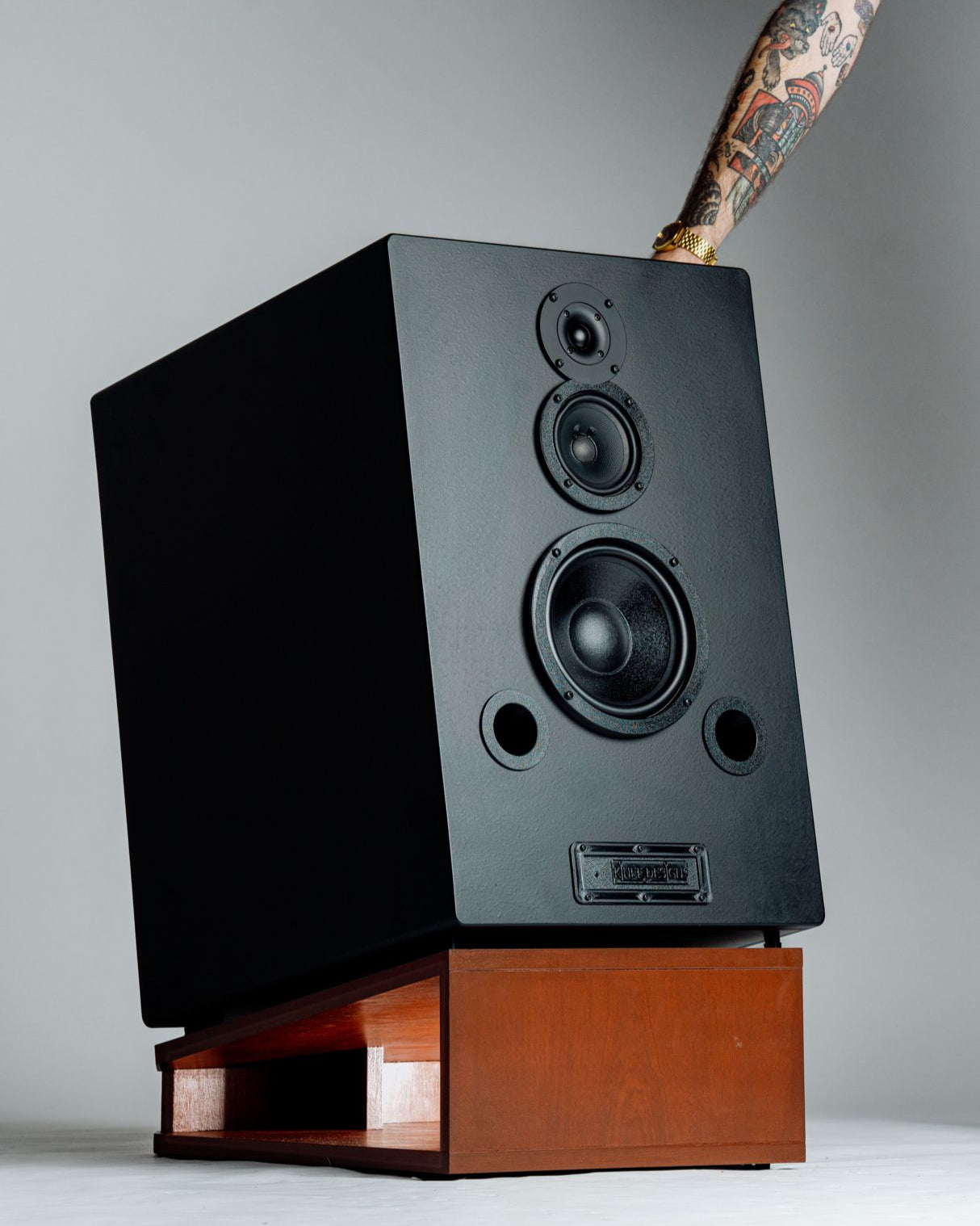

To complete the setup, the loudspeakers come with custom-designed stands that elevate and angle them perfectly for optimal sound projection. These stands are finished with genuine mahogany veneer, adding a touch of timeless elegance to their commanding performance.

The sound profile is meticulously crafted with the equal-loudness curves as a foundation, carefully adjusted to maintain a balanced and linear response. While the speaker's placement in your space will naturally influence its acoustics.

It is strongly recommended to place them in a room larger than 50m², following the recommended below stated placement guidelines, failing to do so, an additional external third party DSP is required:

• Distance between speaker units: 2m to 6m (greater separation requires more angling toward the listening position).
• Distance between each speaker unit and the wall behind them: 30cm to 60cm.
• Distance between each speaker unit and the side wall: Minimum of 1m.
• Distance between the speaker units and the listening position: Minimum of 3m.
• Distance between listening position and the wall behind it: Minimum of 2m.

Specifications:

1. Signal input Master
   • Line In @10kOhm
     • Stereo (RCA connector)
   • Phono In @47kOhm (MM)
     • Stereo (RCA connector)
   • USB @ 96kHz/24bit
     • USB-C connector
   • Bluetooth @ 48kHz/16bit


2. Signal output Master
   • Balance Out
     • Stereo (Dual 3pin XLR connector)


3. Signal input Slave
   • Balance In
     • Mono (Single 3pin XLR connector)


4. Power Inputs
   • Master
     • 100-250 VAC / 50-60 Hz / 15W
   • Slave (per speaker unit)
     • 100-250 VAC / 50-60 Hz / 180W


5. Power Outputs Slave
   • Woofer: 50W
   • Mid: 25W
   • Tweeter: 15W


6. Features
   • Master
     • Old school power toggle switch (no standby power)
     • Front panel power LED indicator
     • Front panel source select switch
   • Slave
     • Analog active crossover
     • Class-D output power stage

     • Old school power toggle switch (no standby power)

     • Front panel power LED indicator


7. Construction material
   • Master
     • PETG
   • Slave
     • MDF
     • PETG


8. Dimensions (W – H – D)
   • Speaker enclosure
     • 436mm
     • 666mm
     • 571mm

   • Speaker stand
     • 380mm
     • 200mm
     • 609mm
   • Master unit
     • 242mm
     • 75mm
     • 155mm


9. Mass per unit
   • Speaker enclosure (single unit)

     • 30kg
   • Speaker stand (single unit)
     • 3kg
   • Master unit
     • 1kg


10. What comes in the package

    • 1x Audio interface

    • 2x Speaker enclosure

    • 2x Speaker stand
    • 3x 2m Power cord
    • 2x 3m XLR 3-pin speaker cables
